Freckle Removal Fractional Co2 Laser Skin Treatment Machine 3mw Diode Z15C-Surigical Laser-Beijing Zohonice Beauty Equipment Co.Ltd-LASER IPL MACHINE

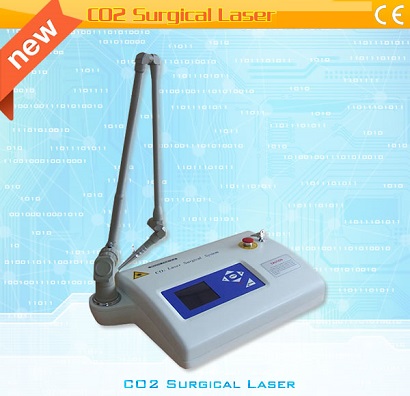

Freckle Removal Fractional Co2 Laser Skin Treatment Machine 3mw Diode Z15C

Treatment range:
General Surgery: haemangioma, adipoma, steatoma, rectal cancer
Oral Surgery: epulis, buccal haemangioma, mucous cyst, lichen planum
Otolaryngology: auricle vegetation, nose tumour and tumor of paranasal sinus, benign tumour of oropharynx, gular haemangioma, vocal polyp, laryngo-carcinoma, chronic pharyngitis, chronic rhinitis, chronic laryngitis
Urology: meatus urinary condyloma, redundant prepuce, caruncle of urethra, polyp of penis
Gynecology: myoma of uterus, cervical erosion, cervical polyp, vagina condyloma
Dermatology: wart, common wart, venereal wart, herpes labial, herpes zoster, nevus pigment, cutaneous malignant tumour
Cosmetology: dispel wringkle tache, stains of face nevus, vegetation and underarm odour

---Theory---
pulse treatment is a fractional treatment that produces thousands of deep, tiny columns in your skin, called micro treatment zones. pulse is fractional in that it intensively treats old epidermal pigment cells without effecting any of the surrounding tissue, which reduces healing time (about 24 hours) and promotes the skin’s natural process for creating newer and healthier tissue to replace the damaged tissue. pulse treatment is a safe, non-invasive procedure that allows you to rediscover the fresh, healthy skin for your beauty.

+86-13910911829 +86-13311332377

or click here for free,no obligation quote

FREE QUOTE

View operate technical video

Facebook

LASER IPL MACHINE

VISIT

---Specification---

Laser Type	PC015-B CO2 (sealed off)
Wavelengths	10.6microns
Mode Structure	TEM00
Power to tissue	15W
Laser Operation Modes	Single. CW. Repeat. .
Super Pulse Peak Power	100 W
Aiming Beam	3mW Diode
Beam Delivery System	7-joint spring-balanced articulated arm
Working radius	110cm
Cooling system	Water closed-cycle
Control System	Microprocessor control (LCD)
Warranty	1 Year
Electrical	230VAC/50Hz or 120VAC/60Hz
Package dimensions (cm)	82x63x36cm
Gross weight by carton (kg)	28 kg

---Operate Guide---

---Operation---
The microprocessor-based main panel is used to
control all functions by touching the thin film switch.
Time and power are displayed digitally, which is clear
and accurate.
The laser cooling system is a closed circulating loop.
The coolant (distilled water or ion water) is circulated
by a pump.
A footswitch is used to control laser output. When the
footswitch is pressed, the shutter opens and laser
emits from the articulated arm.
The laser beam delivery system consists of lightweight,
spring- balanced, 7-joint articulated arm. The
working radius of the ar ticulated arm at full
extension is 130cm.
1.3.5 Footswitch
1.3.3 Main
control panel
---Advantage---
Compact and easy to operate
Sealed-off CO2 laser technology
CW, repeat pulse, and super pulse operation modes
7-joint spring-balanced articulated arm
Pilot beam of 5mW diode laser
Safety protection with alarming automatically

What to do after treatment？

◆ Avoid exercise that will create friction and make sure to gently pat off any sweat

or water to dry the skin under your dressing.

◆ For the first 3 days after treatment, keep the treated area bandaged with sterile

gauze and protected with a thin layer of antibiotic or healing ointment.

◆ After 3 days, keep the treated area clean and dry during the healing processIt

is recommended to wait at least six weeks after gettinga new tattoo to begin

the laser tattoo removal process.

Feature

- Sealed-off CO 2 laser technology
- CW, Pulse and Super Pulse operation modes
- Durable thin film key switch, with microprocessor controlled
- LCD displayer illustrates the working status as well as parameters
- 7-joint spring balanced articulated arm
- Pilot Beam of visible Diode Laser
- Safety protection with automatic alarm
- Easy to maintain
